Rapid Functional Prototyping for Robotic Actuator in PETG-CF & TPU, case study.
A robotics startup needed to validate joint stiffness, thermal dissipation, and cable routing on a high-torque smart actuator before committing to CNC aluminum machining. Yantrix 3D printed 6 design iterations in PETG-CF and TPU at our Surat studio, completing functional dynamometer validation in under 3 weeks.
By Yantrix Engineering · 3D Printing & Prototyping Studio2 min readRobotics Hardware & Automation
Overview
Why this study matters
Iterative functional 3D printing for a high-torque robotic actuator housing — print-in-place compliant seals, heat-set threaded inserts, and 48-hour turnarounds in PETG-CF.
Client: An Indian robotics startup developing modular collaborative robotic joints
Project Type: Additive Manufacturing (DfAM) + Functional Prototyping
Industry: Robotics Hardware & Automation
Service Used: 3D Printing Services + DfAM + Rapid Prototyping
Results in numbers
What the engagement actually shipped.
- 52 Nm
- Dynamometer torque bench test
- 48 hr
- Turnaround per iteration
- PETG-CF
- Carbon-fiber composite
- 6
- Physical prototype revisions
Objectives
What the project needed to achieve
- Fabricate functional prototype housings with bearing press-fit tolerances (±0.05 mm)
- Survive 45 Nm continuous torque without layer delamination or joint deflection
- Integrate multi-material TPU dust seals and brass heat-set M3/M4 inserts
- Deliver each design iteration within 48 hours for rapid dynamometer testing
Challenge
Engineering constraint
The engineering team had designed a compact cycloidal actuator housing requiring high torsional rigidity, internal bearing seats, and dust seals. Traditional CNC machining quotes quoted ₹45,000 and 3 weeks lead time per iteration. With gearbox backlash and motor thermals uncertain, the team needed working, torque-tested prototypes in days rather than months.
Approach
How Yantrix approached the work
- 01Applied DfAM principles: oriented layer lines parallel to principal torsional stress vectors and added continuous carbon-fiber infill pathways.
- 02Tuned Bambu Lab X1-Carbon print profiles with OrcaSlicer for Carbon-Fiber PETG (PETG-CF), optimizing extrusion temperature (265 °C) and wall loops (6 perimeters) for maximum isotropic shear strength.
- 03Post-processed bearing bores with reaming fixtures and installed 14 brass heat-set inserts per housing using temperature-controlled insertion jigs.
- 04Iterated 6 physical revisions in 18 days: adjusting motor heatsink clearances, cable strain reliefs, and magnetic encoder air-gap spacing based on live test bench data.
Outcomes
What improved by the end
- Achieved 52 Nm ultimate failure torque — exceeding the 45 Nm operational target by 15%
- Reduced prototyping cycle time from 21 days (CNC) to 48 hours per revision
- Total prototyping spend reduced from ~₹2.7 lakh (CNC) to ₹34,000 (3D printing farm)
- Final validated CAD released directly to CNC production with 100% first-pass assembly success
Deliverables
What the client receives
- Print-optimized 3MF files with slice profiles, fiber orientation, and density maps
- Functional PETG-CF + TPU physical prototype assemblies with installed hardware
- DfAM dimensional inspection report (CMM & caliper measurement of critical bearing fits)
- Final tooling-ready CAD update incorporating all test bench refinements
Tools used
Stack and tooling
- Bambu Lab X1-Carbon & Bambu P1S Farm
- OrcaSlicer with custom high-strength profiles
- PETG-CF (Carbon Fiber PETG) & TPU 95A
- SolidWorks DfAM Feature Modeling
- Heat-Set Insert Temperature-Controlled Press
Impact
Business-level effect
- Saved over 3 months of prototyping time, allowing the client to demonstrate a working robot arm to investors
- Avoided 4 costly CNC machining redesigns by catching thermal and harness clashes on 3D printed iterations
- Client adopted our Surat studio for ongoing small-batch prototype builds
Conclusion
Functional 3D printing with engineering composites like PETG-CF and PA-CF bridges the gap between digital CAD and metal machining — allowing teams to test real physics in 48 hours.
Next step
Need working functional prototypes printed in engineering-grade materials? Upload your CAD files to our Surat 3D printing studio for immediate review.
Tagged
- 3D Printing
- Rapid Prototyping
- DfAM
- PETG-CF
- Robotics
- Surat
Visual results
Key views and intermediate artefacts

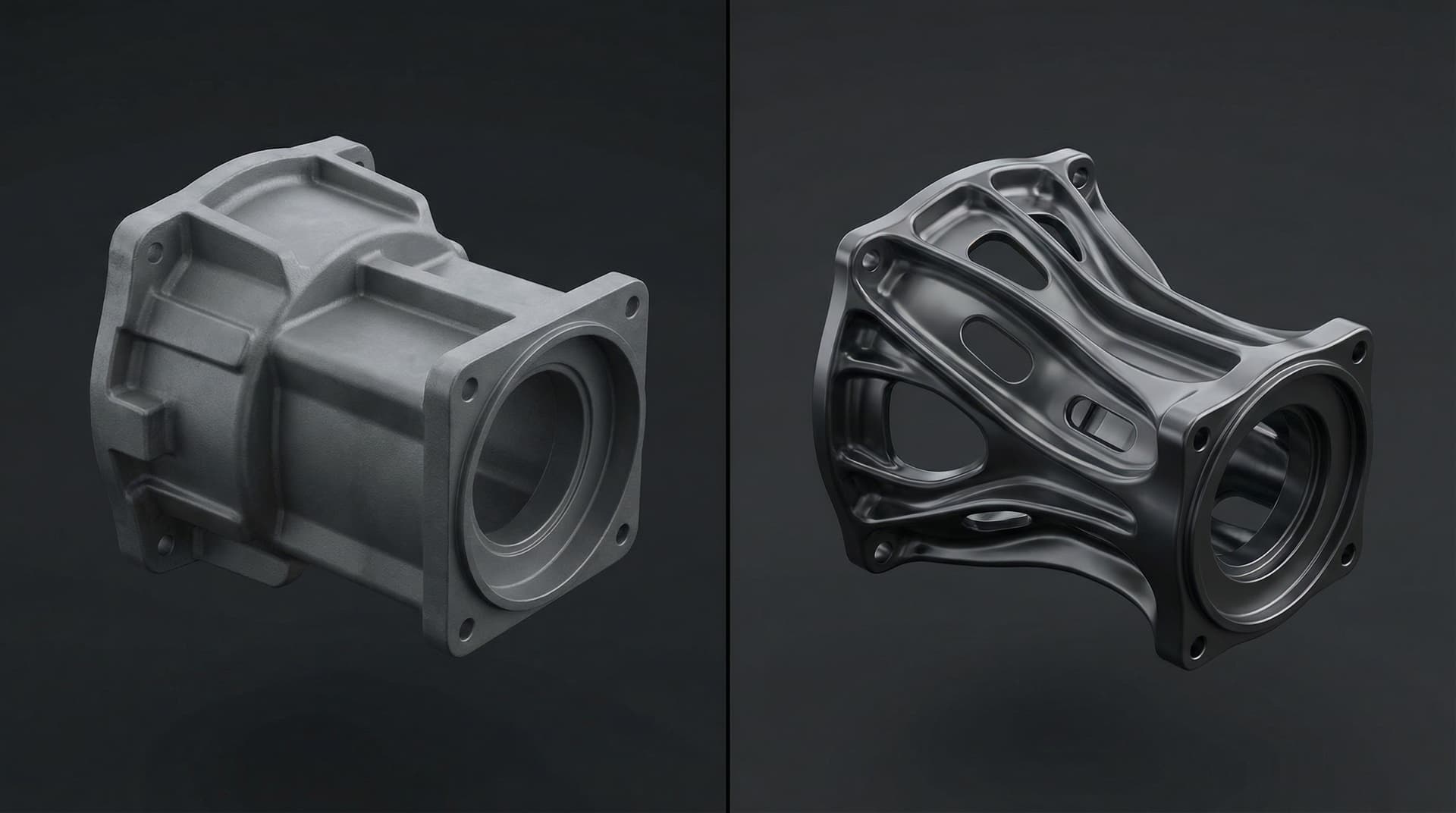

Dynamometer torque test setup
Frequently asked questions
Answers from the engagement itself.
Can 3D printed parts handle functional torque and load testing?
Yes. With continuous perimeter walls (5–6 loops), high infill density (40–60% gyroid), and engineering filaments like PETG-CF or PA-CF, printed housings routinely survive 50+ Nm torque loads without delamination.
How fast can Yantrix deliver 3D printed prototypes across India?
From our studio in Surat, standard FDM and SLA prints ship within 24–48 hours via express courier to Mumbai, Bangalore, Pune, Delhi, Ahmedabad, Hyderabad, and Chennai.
Related case studies
Adjacent proof you can read next.
Lightweight structures
Drone frame topology optimization — 22% lighter, same stiffness
Topology-driven redesign of a survey drone frame in PETG-CF — dropped frame mass by 22% with no loss in stiffness, extending flight time by 6.4 minutes per sortie.
Robotics · Autonomous Mobile Robot (AMR)

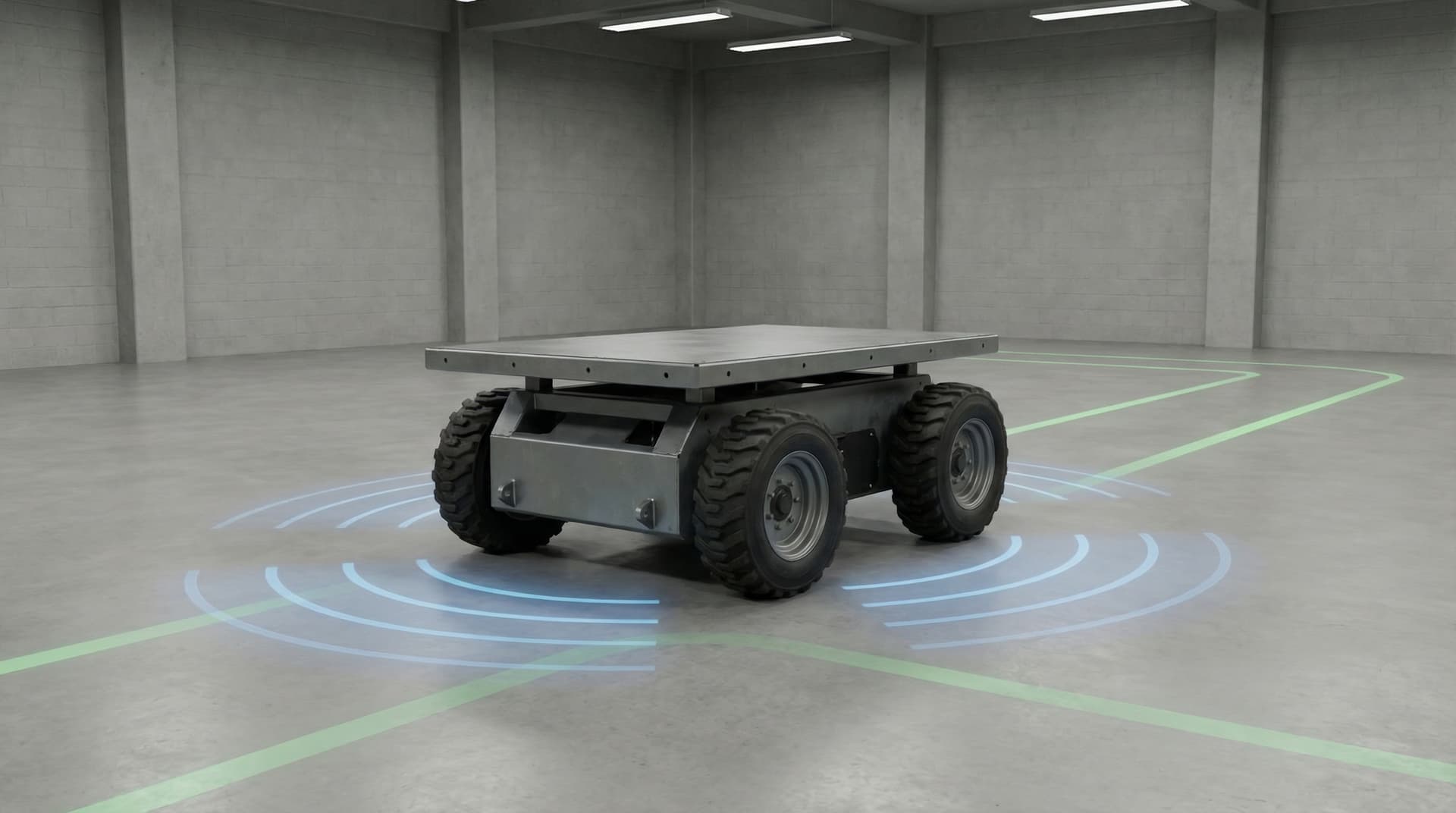

80 kg Payload Autonomous Mobile Robot with Nav2 & LiDAR SLAM
